Researching Assets Tracker? Focus on Triode!

‌

When researching assets trackers, it's essential to first understand the ‌characteristics and working conditions of the triode‌. In our recent hardware knowledge workshop, our engineers delved deeper into the triode, building on last week's discussion.

The triode is a critical component in our tracking device, functioning primarily as a ‌signal-controlled switch‌. It plays a pivotal role in transmitting data from the device to the cloud backend. By analyzing its properties and operational states, we can better comprehend how it contributes to the overall performance of the tracker.

Key aspects to consider include the triode's input and output characteristics, as well as its behavior under different working conditions. Mastering these fundamentals is crucial for effective assets tracking.

Cargo Tracking Device: Key Functions and Benefits‌

The cargo tracking device plays a crucial role in monitoring various aspects of cargo during transportation. Its primary function is to:

• ‌TrackReal-Time Location‌: Ensure the cargo's whereaboutsare known at all times.
• ‌MonitorStorage Environment‌: Maintain optimal conditions forthe cargo.
• ‌CheckMovement Status‌:Keep track of the cargo's movement and handling.

By doing so, the device helps to:

• ‌PreventLoss‌:Reduce the risk of cargo being lost or misplaced.
• ‌AvoidExchange Issues‌:Ensure the right cargo is delivered.
• ‌MinimizeDeterioration‌:Keep the cargo in good condition.

‌Prevent Collision Damage‌: Avoid serious damage due to accidents.‌

Triode's Role and Characteristics in Data Transmission‌

The triode plays a pivotal role in data transmission from a device's sensor to the cloud backend. ‌Once data is collected‌, it controls the signal switch, ensuring seamless communication.

‌Key Focus: Triode Understanding‌

• ‌Characteristicsand Working Status‌: This issue primarily delvesinto the triode's attributes and operational states.
• ‌Input/OutputCharacteristics‌:It's vital to comprehend the triode's input and output properties foreffective utilization.

By mastering these aspects, one can harness the triode's potential in hardware devices, particularly in systems requiring reliable data transmission.‌

‌Analyzing the Triode: Focus on Input and Output‌

When delving into the triode, the core aspect lies in examining its input and output. This involves:

• ‌Input/OutputAnalysis‌:Studying the relationship between the base current (input) and thecollector current (output).

Understanding this characteristic relationship is fundamental to comprehending the triode's behavior. As illustrated in Figure 16-1, the base current serves as the input, while the collector current is the output. By analyzing this relationship, one can gain insights into how the triode operates and its potential applications in electronic circuits. This focus on input and output is crucial for anyone working with or studying triodes, as it provides a foundation for understanding their functionality and performance.‌

Input Characteristics of a Triode‌

The input characteristics of a triode describe a key relationship:

• ‌BaseCurrent and Emitter Voltage‌: The base current L(b) isdetermined by the emitter junction voltage drop V(be).

This relationship is, in fact, an exponential one, mirroring the behavior of the forward current in a PN junction with respect to the applied voltage. Typically, when V(be) exceeds 0.7V, a significant base current L(b) is observed.‌

Why V(ce) is Kept Constant ?

To establish an input relationship, we first set V(ce) as a constant. This is because:

• ‌Effecton Relationship‌:Keeping V(ce) constant allows us to observe how changes in other variablesaffect the input relationship.

When V(ce) increases, more free electrons from the emitter are drawn into the collector, increasing L(c). This reduces the free electrons available for recombination in the base, lowering L(b). To maintain L(b), we must increase V(be), injecting more free electrons into the base. Notably, when V(ce) reaches a certain level, all available free electrons in the emitter are collected by the collector, and the collector current stops increasing.‌

‌Low-Power Tube Characteristics‌

Generally, a low-power tube can achieve V(ce)=1V. ‌Input Characteristic‌: The input characteristic curve reveals that when V(ce) is 1V or higher, V(be) remains constant, indicating no further increase in L(c).

‌Output Characteristic‌:

‌Collector Current and Voltage Drop‌: The output characteristics describe the relationship between the collector current L(c) and the tube voltage drop V(ce).‌

Cut-Off and Saturation Regions‌

• ‌Cut-OffRegion‌:In this region, the base-emitter junction remains off due to low V(be),resulting in L(b)=0. Consequently, L(c) shows little current even withhigh V(ce), indicating no significant relationship between L(c) and V(ce)when L(b)=0. However, a small leakage current related to V(ce) may exist.

‌Saturation Region‌: Here, L(c) increases rapidly and linearly with V(ce) and remains stable with increasing L(b). Typically, the saturation voltage V(ces) between collector and emitter is 0.3V after saturation.‌

Transistor Operating States and L(c) Relationship‌

In the magnified view, L(b) shows a step change, forming equidistant parallel lines, indicating that L(c) is independent of V(ce) but directly related to L(b) as L(c)=β*L(b). The transistor, in this state, is driven solely by V(be) input, acting as a transconductance device or a voltage/current-controlled current source.

To achieve desired operating states:

• ‌Cut-Off‌: Ensure V(be) is notturned on.
• ‌Saturation‌: Set V(ce) to 0V andadjust the collector power supply voltage divided by collector resistanceto get L(c). If L(b) > L(c)/β, the transistor issaturated. For a typical transistor, L(b)≥0.1*L(c) indicatessaturation.

‌Amplification‌: With sufficient forward bias on the emitter junction, if the base input current is small, the amplification relationship L(c)=β*L(b) holds true.‌

Temperature Effect on Triodes‌

• ‌Importanceof Temperature Characteristics‌: Hardware engineers mustconsider the temperature characteristics of triodes.
• ‌PotentialIssues‌:Temperature changes can lead to circuit errors and component performancevariations.

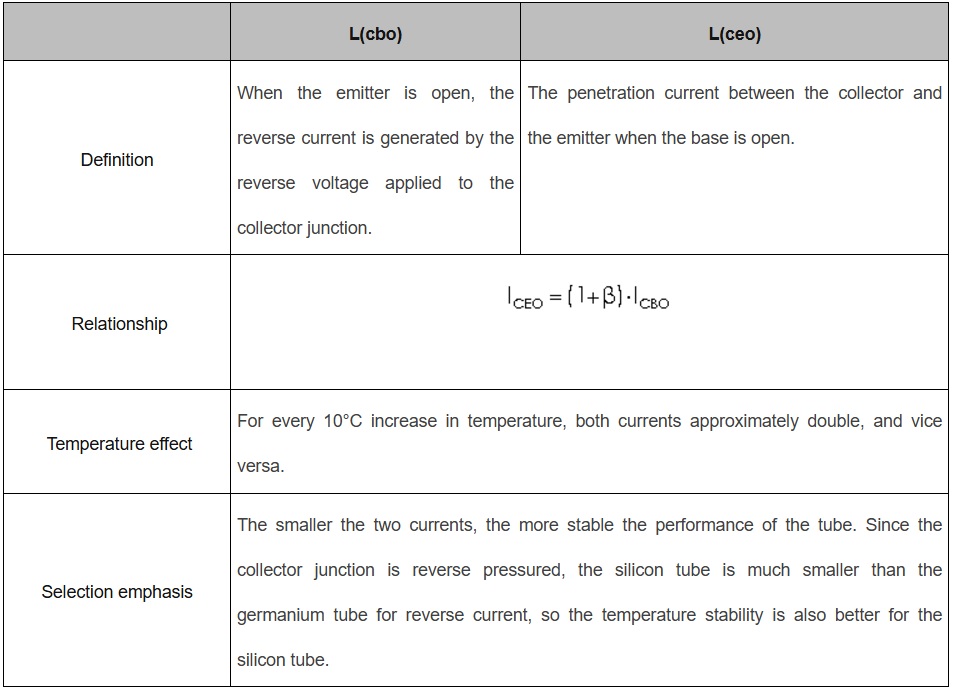

• ‌DesignConsiderations‌:These issues must be thoroughly addressed in electronic product design toavoid irreversible consequences.‌‌1‌

It's crucial to keep in mind the impact of temperature on triodes to ensure reliable and efficient electronic systems. By understanding and accounting for temperature-related changes, engineers can design more robust and resilient products.‌

Temperature Effect on Triode Characteristics‌

• ‌InputCharacteristic Shift‌: As illustrated, the triode'sinput characteristic curve shifts with temperature, similar to diodes.‌1
• ‌E-MEquation Consistency‌: This temperature effect alignswith the quantitative relationship derived from the E-M equation.
• ‌V(be)& L(b) Changes‌: With constant L(b), V(be)decreases by ~2.1mV/°C; constant V(be) results in L(b) increase withtemperature.
• ‌OutputCharacteristic Impact‌: As shown, output current L(c)increases with temperature, indicating higher current amplification factorB=L(c)/L(b).‌1

These observations highlight the significant influence of temperature on triode performance.
